To do is better than to say,customer satisfaction is the eternal pursuit of enterprises.
2 Years
| Ask Lasest Price | |
| Brand Name : | Luyoung |

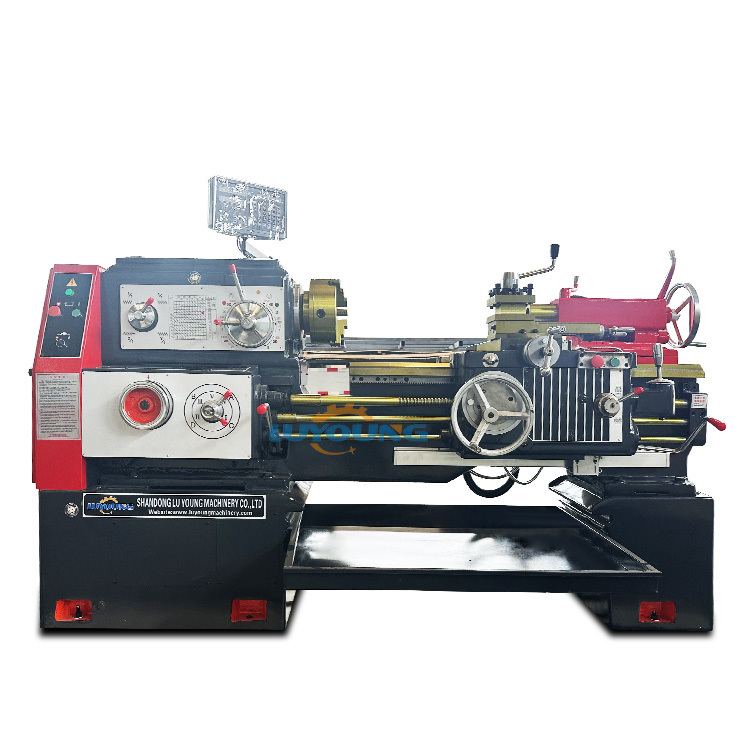

| Model Number : | C6241x750 |
| Certification : | CE |
| Price : | USD6000-10000 |
| Payment Terms : | L/C, T/T |
| Supply Ability : | 30/SET |
| Delivery Time : | 45 working days |
| Model | Unit | C6136A | CA6140A | CA6240 | CA6150 | CA6250 | |
| Max.Swing over bed | mm | 360 | 400 | 410 | 500 | 500 | |
| Max.Swing over carriage | mm | 190 | 210 | 225 | 300 | 300 | |
| Max.Swing in gap*Effective gap length | mm | - | - | 630*210 | - | 720*210 | |
| Distance from spindle center to bed plane guide | mm | 205 | 205 | 205 | 250 | 250 | |
| Max length of bed | mm | 750/1000/1500/2000/2200/3000/4000 | |||||
| Width of bed | mm | 400 | |||||
| Section of turming tool | mm | 25×25 | |||||
| Spindle | Spindle speeds | rpm | 11-1600./12-1680 | ||||
| spindle bore | mm | 52 | |||||
| Spindle taper | NO.6(MT6)(φ90 1:20) [φ113 1:20] | ||||||
Feed | Range of metric threads(kinds) | mm | (1-192)44(44 kinds) | ||||
| Range of inch threads(kinds) | (2-24tpi)21(21 kinds) | ||||||
| Range of module threads(kinds) | 0.25-48(39)(Module 39kinds) | ||||||
| Range of pitch threads(kinds) | 1-96DP(37)(37kinds) | ||||||
| Taistock | Max.tail stock spindle travel | mm | 150 | ||||
| Tail stock spindle diameter | mm | 75 | |||||
| Taper of tail stock spindle center hole | NO.5(MT5) | ||||||
| Main motor | KW | 7.5KW | |||||
| Packing dimensins (L*W*H) | 750mm | mm | 1900*1400*1630 | 2400*1400*1630 | |||
| 1000mm | mm | 2400*1400*1630 | 2900*1400*1630 | ||||
| 1500mm | mm | 2900*1400*1630 | 3400*1400*1630 | ||||
| 2000mm | mm | 3400*1400*1630 | 3900*1400*1630 | ||||
| Weight | 750mm | kg | 1900 | 2060 | |||
| 1000mm | kg | 2070 | 2140 | ||||
| 1500 | kg | 2570 | 2640 | ||||
| 2000 | kg | 2570 | 2640 | ||||
1. The guide rails undergo high-frequency quenching and grinding treatment, offering excellent wear resistance and ensuring long-term stability and machining accuracy of the machine tool.
2. Distance between two centers: 750/1000/1500m2000mm
3. Feed and Thread Machining: This series of lathes possesses robust thread machining capabilities, capable of cutting metric, imperial, module, and diametral pitch threads to meet diverse processing requirements. It offers multiple longitudinal and transverse feed rates (42 types each), facilitating the selection of optimal cutting parameters.
|
|
