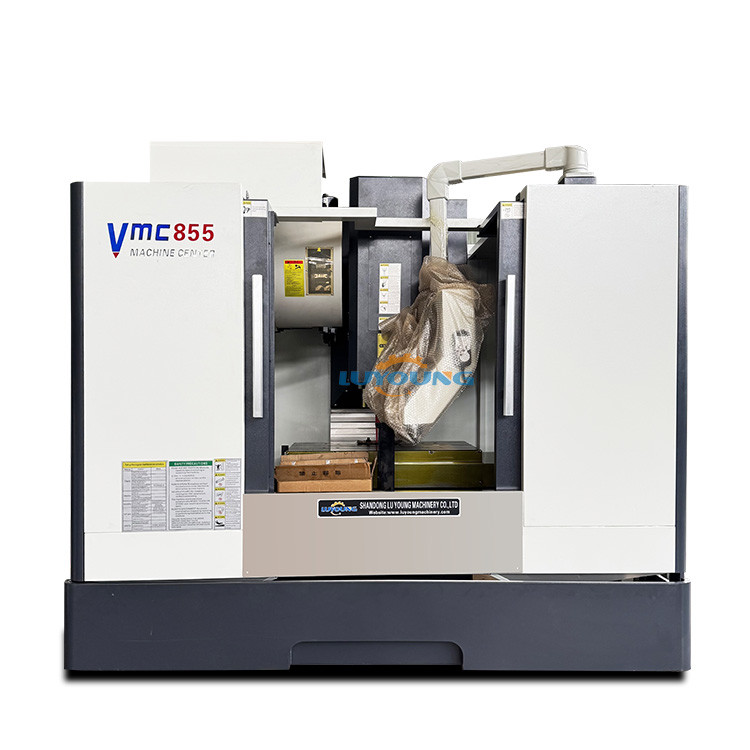

    High Accuracy Vertical Machining Center VMC855 BT40 8000RPM Milling Machine

    Ask Lasest Price
    Brand Name : luyoung
    Model Number : vmc855
    Price : USD19400-USD20700
    Payment Terms : L/C, T/T
    Supply Ability : 60 Set/Sets per Month
    Delivery Time : 45 working days
    • Product Details
    • Company Profile

    High Accuracy Vertical Machining Center VMC855 BT40 8000RPM Milling Machine


    Specification

    ItemVMC855
    Size of worktable(length×width)mm1000×500
    T slot (mm)5-18x100
    Max loading weight on worktable600kg
    X-Axis travel(mm)800
    Y-Axis travel(mm)550
    Z-Axis travel(mm)550
    Distance between spindle nose and table105-605mm
    Distance between spindle
    center and column(mm)
    550
    Spindle taperBT40-150
    Max. spindle speed( rpm)8000/10000/12000
    Spindle motor power(Kw)7.5/11kw
    Rapid feeding speed: X,Y,Z axis m/min16/16/16 (24/24//24 liner guidway)
    Fast cutting speed m /min10m/min
    Positional accuracy±0.005 mm
    Repeat positional accuracy±0.003 mm
    Auto Tool changer type16 tools head type tool changer(optional 24 arm type auto tool changer)
    Max. tool length300mm
    Max. Tool diameterΦ80(adjacent tool)/φ150(not adjacent tool)
    Max.tool weight8kg
    Tool changing time(tool-to-tool)7sec
    Air pressure0.6 Mpa
    Machine weight5500KG
    Overall sizse(mm)2600*2300*2300

    High Accuracy Vertical Machining Center VMC855 BT40 8000RPM Milling Machine

    Application Scenarios of Vertical Machining Centers

    IndustryTypical WorkpiecesKey Technical Requirements
    Mold ManufacturingInjection molds, stamping die bases, electrodesPrecision surface milling (Ra ≤ 0.8μm), deep-cavity machining
    AerospaceWing ribs, brackets, Al/Mg alloy structural partsDistortion prevention for thin-walled parts, high-speed cutting (≥12,000 rpm)
    Automotive ComponentsTransmission housings, brake calipers, motor end coversMulti-face machining, positional tolerance ≤ 0.02mm
    ElectronicsHeat sinks, chip carriers, connector housingsMicro-hole drilling (Φ ≥ 0.3mm), high surface finish
    Medical DevicesSurgical instrument holders, implant fixturesBiocompatible material machining (e.g. Ti alloy), micron-level accuracy
    Energy EquipmentValve bodies, turbine blades, pump housingsSealing surface prec
